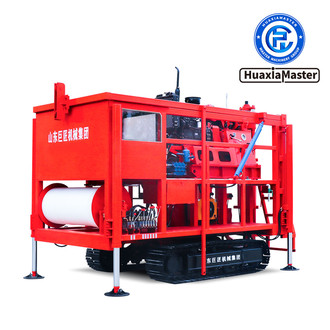

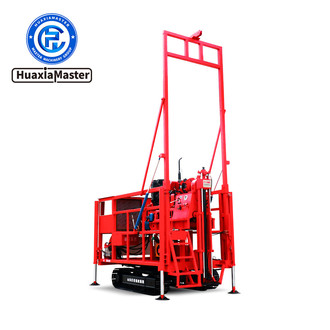

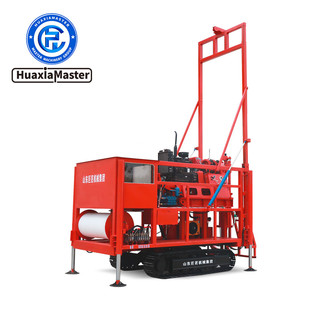

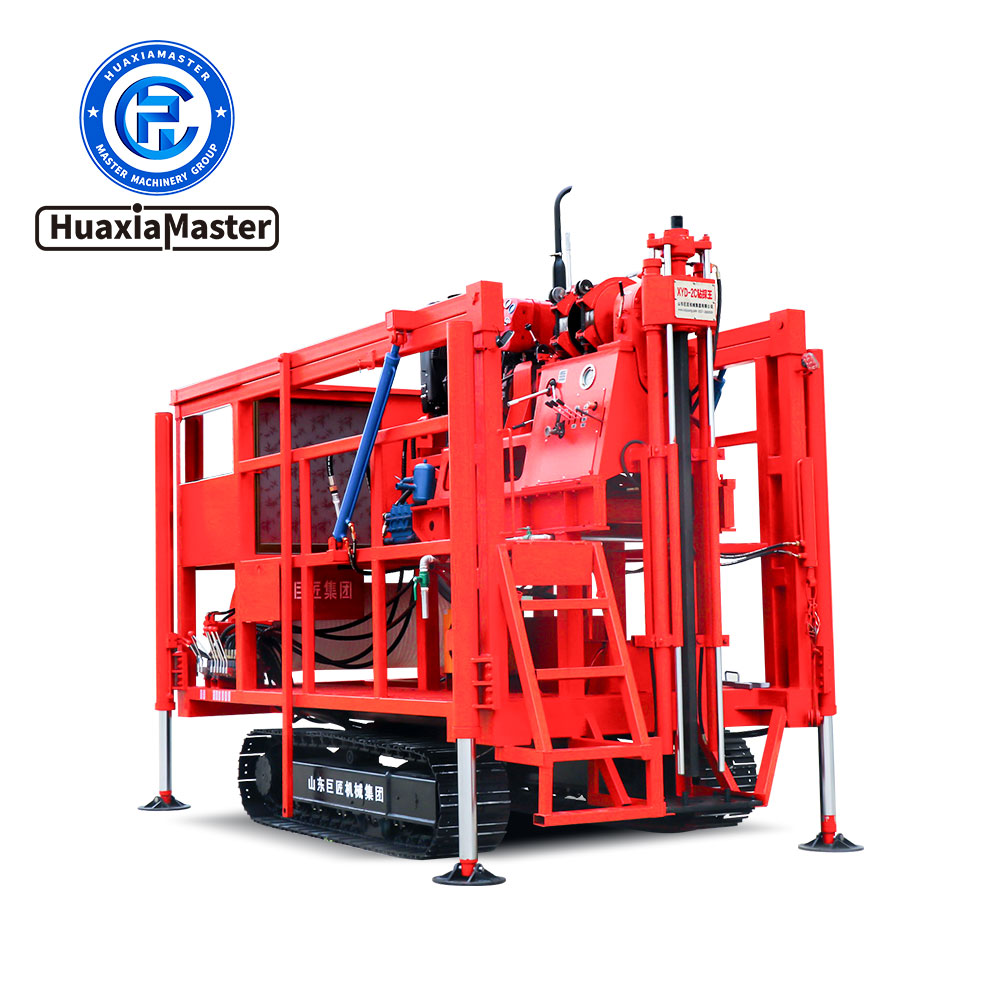

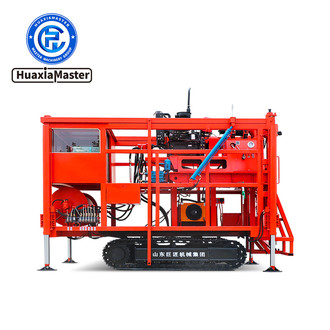

XYD-2C Crawler Hydraulic Core Drilling Rig

XYD-2C Crawler Hydraulic Core Drilling Rig 1、Introduction of XYD-2C Hydraulic Core Drilling Rig XYD-2C hydraulic core drilling rig is an upgraded core drilling equipment based on XY-2 hydraulic drilling rig. The whole machine adopts the heightening design, which can increase the pole by 2m at a time, and the efficiency is greatly improved. The steel crawler chassis is suitable for the difficult mountain roads, especially in Yunnan, Guizhou and Sichuan areas. It is widely used in highway, railway, house and Bridge exploration. It has outstanding performance in drilling backfill and well drilling. Now, the drilling rig is called "HUAXIAMASTER drill king" by the majority of drilling friends. 2、Features of XYD-2C Hydraulic Core Drilling Rig 2.1 The drilling rig adopts heightening design, which provides space for adding auxiliary function area. 2.2 The main engine is equipped with a fixed clamping mechanism and an extended integral main rod, which can realize reciprocating rod adding without lifting the drill, and the drilling efficiency is greatly improved. 2.3 Hydraulic landing gantry drill tower is supported by two oil cylinders, which is safe and convenient to operate. 2.4 It can be used for staff rest. 2.5 Drum and water pipe are equipped to provide clear circulating water for drilling rig from nearby water source. 2.6 Equipped with steel crawler chassis, it has strong cross-country performance and can easily deal with various complex working sites. 2.7 Equipped with hydraulic high outrigger, it is used for leveling the drilling rig to ensure the stability of the fuselage 2.8 Centralized control handle, reasonable layout, flexible and reliable 2.9 Turn on the power switch, turn the start key to the start position, and you can start it with one click 2.10 The main engine is equipped with moving slide, which is convenient for drilling 3、Parameters of XYD-2C Hydraulic Core Drilling Rig Drilling rig model XYD-2C Overall machine parameters Drilling depth 300m Borehole diameter 75-219mm Main rod specification 79*89mm Length of main pole 2810mm Power 33kW Mud pump Three cylinder 160 mud pump Drill weight 6T Dimensions(retracted tower) 4.7*2.4*3.2m Rig tower Derrick height 6200mm Maximum load weight of drilling tower 2000Kg Drum Drum length 1500mm Water pipe winding 300m Track chassis Track specifications 2.6*0.4m Track capacity 8000Kg Rated grade 0~30° Walking speed 5~20km/h Note: Products are constantly being improved. If there are any changes, we will not notify you separately. Please refer to the actual product.
